JUKI | DDL 5550 Machine with Table Stand Motor

JUKI DDL-5550 Industrial Lockstitch Sewing Machine with Table & Motor | Made in Japan No Tax Outside S.C. | Table Fully Assembled | Ships Ready to Sew

For decades, the JUKI DDL-5550 has been a benchmark industrial lockstitch machine, trusted by tailors, upholsterers, and production shops alike. Consequently, it remains one of the most recommended entry points into industrial sewing. Whether you're stitching light cottons or heavier upholstery fabric, understanding how this machine works — and which variant fits your material — makes all the difference.

ebay.com

Juki DDL-5550-6 Commercial 1 Needle Lockstitch Sewing Machine with table | eBay

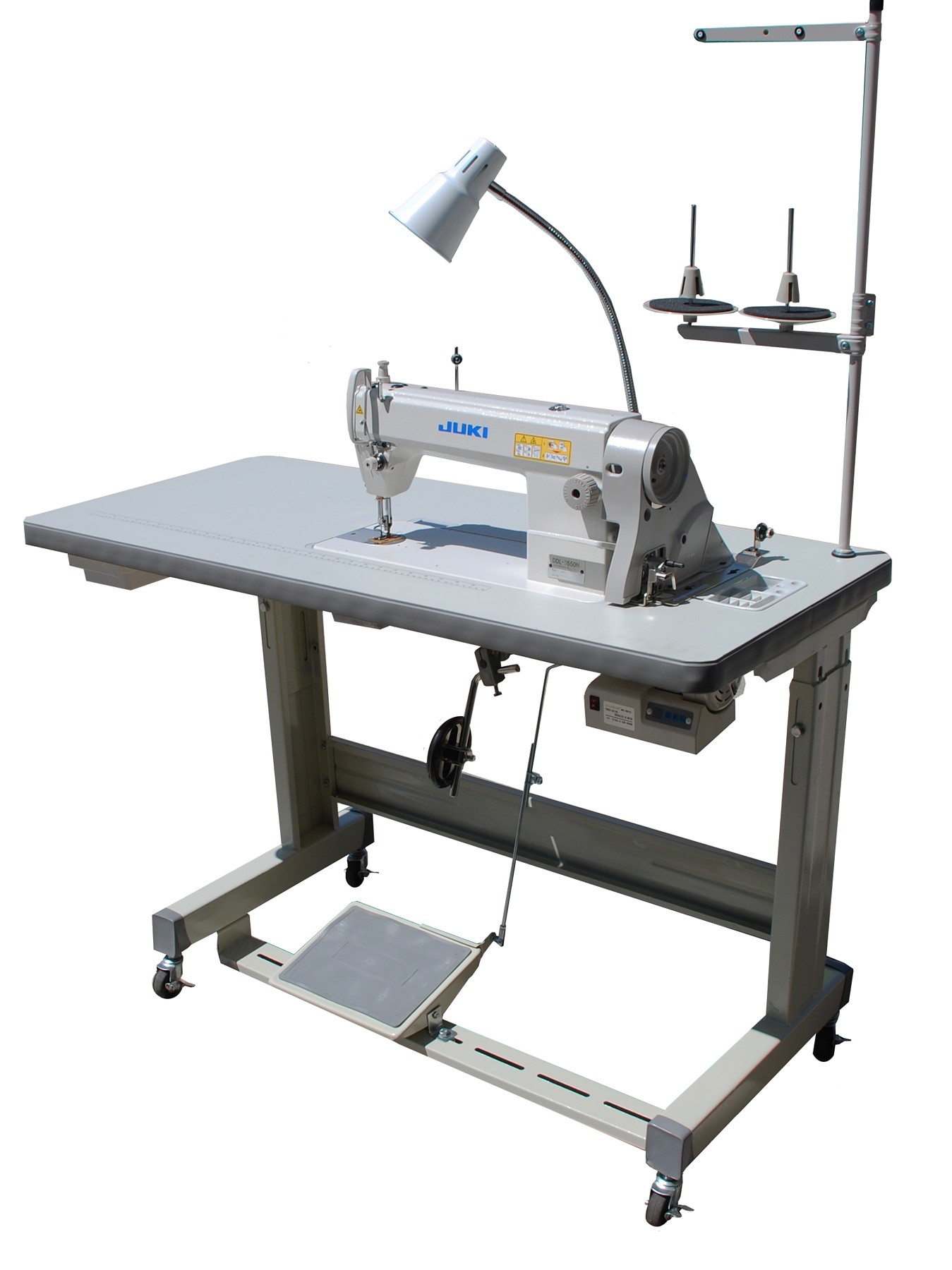

Juki DDL-5550 industrial lockstitch sewing machine mounted on the fully assembled 48" × 20" table.

Understanding the DDL-5550 Platform

Because “DDL-5550” actually covers a small family of related machines, it helps to understand the platform before choosing a model. Each variant shares the same core lockstitch design, automatic lubrication, and Japanese engineering. However, they’re tuned differently for specific fabric weights, so picking the right one directly affects stitch quality and machine longevity.

Key Features & What They Mean for You

• Automatic-lubricating full-rotary hook — Since the hook self-lubricates via a plunger pump system, you spend less time on maintenance and more time sewing, while extending the life of internal components.
• 3-row feed dog — This design grips fabric more evenly across three points of contact, meaning stitches stay consistent even as material thickness or texture changes mid-seam.
• Slide-type thread take-up — As a result, thread tension stays smoother and more even, which reduces skipped stitches and puckering, especially on lighter fabrics.
• Improved thread path and feed mechanism — Because Juki refined these systems specifically for the 5550 generation, the machine responds better to sudden material changes, so stitch quality stays consistent across a mixed-fabric workload.
• Dual presser foot lift (hand & knee) — With 5.5 mm lift by hand and up to 13 mm by knee, you can keep both hands on your fabric while adjusting foot height, which speeds up repetitive tasks significantly.
• Servo motor included — Unlike older clutch motors that run at a fixed high speed and consume more power, the servo motor gives precise speed control, runs quieter, uses up to 90% less energy when idle, and is easier for operators of all experience levels to control.
• Fully assembled industrial table included — The standard 48" L × 20" W commercial table with adjustable height (approximately 26"–32") arrives fully assembled. Many competitors ship the table in pieces and charge extra for assembly; here it is included and ready.

youtube.com

How to change the oil on a Juki self oiling sewing machine (and other brands too).

Automatic lubrication oil reservoir — the plunger-pump system keeps critical components properly oiled without manual daily oiling.

Choosing the Right Model for Your Material

Because fabric weight determines needle size, stitch length, and presser foot lift, Juki offers four DDL-5550 variants. Therefore, matching your primary material to the right model is the single most important decision before ordering.

So, for example, if you’re primarily sewing garments and light textiles, the NA variant’s finer needle and gentler foot lift will protect delicate fabric. Meanwhile, upholstery and heavy canvas work calls for the NH’s larger needle and full 13 mm knee lift, which accommodates thicker, multi-layer material without strain.

Who This Machine Is Best For / Not Best For

Best for

• Garment production shops and alteration houses
• Light-to-medium weight fabrics (N and NA models)
• Upholstery and canvas work (NH model)
• Anyone wanting a durable, high-speed Japanese lockstitch workhorse
• Shops that value automatic lubrication and low maintenance

Not ideal for

• Beginners looking for decorative stitches or computerized features
• Free-motion quilting or multi-function home sewing
• Extremely heavy leather or walking-foot applications (consider a DNU or LU series instead)

Full Specifications

Why the Automatic Lubrication System Matters

Unlike manually-oiled machines, the DDL-5550’s plunger pump distributes Juki New Defrix Oil #2 automatically to every critical point. As a result, you avoid the two most common causes of industrial machine failure: under-lubrication, which accelerates wear, and over-oiling, which stains fabric. In short, this system protects both your machine and your finished product.

Built for Long-Term Production Use

Since the hook, feed mechanism, and thread path were specifically refined for this generation, the DDL-5550 handles fabric transitions — for instance, moving from denim to lining fabric — with noticeably less adjustment than older lockstitch platforms. Therefore, shops running mixed orders benefit most, since downtime between fabric changes drops significantly.

Please Identify Your Model at Checkout

Since the DDL-5550 platform includes four distinct configurations, please specify which version you need — N, NA, or NH — in the note section when placing your order. This ensures you receive the correct needle system, stitch length, and presser foot lift for your material.

Built for These Real-World Projects

Because the DDL-5550 platform spans light to heavy fabric weights, it covers a genuinely wide range of everyday sewing work. For example, shops use it to construct dress shirts, polo shirts, and men’s jackets, while others rely on it for briefs, brassieres, shorts, and trousers. Meanwhile, heavier-duty variants extend that range into upholstery and canvas work. So whether you’re running a garment production line or sewing at home, there’s a configuration built for your material.

Shipping & Delivery Details

Since this is a heavy industrial machine, delivery works differently than a standard package. Here’s what to expect:

• Curbside delivery only — Freight carriers do not bring items inside your home or shop, so plan for placement and moving equipment on your end once it arrives.
• Delivery scheduling call — The freight carrier will contact you directly to arrange a delivery time; someone should be available to receive and inspect the shipment.
• Table ships pre-assembled — The table and stand arrive fully assembled and ready for the machine head. Many competitors charge extra for this step; it is included at no additional cost.
• Machine head shipped separately for protection — The head ships in its own protective box and is placed into the table by the owner once it arrives. Straightforward setup guidance is available if needed.
• Approximate shipping weight — Combined table, stand, motor, and machine head typically total 200–235 lbs, so having help on hand for unloading and positioning is strongly recommended. (Note only forklift or liftgate selection for unloading No jumping into rear of delivery truck to unload manually.
• Contiguous U.S. shipping only — We are currently unable to ship industrial machines outside the contiguous United States.
• Minor cosmetic handling marks possible — Because tables are assembled in a warehouse environment, minor scuffs or scratches from handling can occasionally occur; these do not affect machine performance.

Delivery Inspection & Returns

Because industrial machines are heavy and precisely calibrated, careful delivery inspection is important:

1. Inspect before signing. Once you sign the delivery receipt, it confirms the product arrived in acceptable condition.
2. Fully unbox on arrival, regardless of how the outer packaging looks, since internal damage is not always visible from outside.
3. Refuse the shipment if the cabinet or major components are damaged. This is the cleanest way to arrange a full replacement.
4. Keep all packaging until you have fully confirmed the machine and accessories are in satisfactory condition.

If the product is signed for in good condition but later found damaged, replacement parts can be purchased and installation is the customer’s responsibility. Returned items are subject to a restocking fee (waived for defective merchandise or items shipped in error). Original shipping and handling is non-refundable.

Warranty

Juki home and industrial machines purchased from an authorized dealer typically carry a limited factory warranty of 90 days on mechanical parts and on electrical components. Labor coverage isnot included. Warranty protection requires purchase from an authorized Juki dealer and service performed by qualified technicians using genuine parts. Carolina Forest Vac & Sew is an authorized Juki dealer.

Frequently Asked Questions

Which DDL-5550 model should I buy for garment sewing? The DDL-5550NA is built specifically for light-weight materials, so it is the better fit for garments, linings, and delicate fabrics.

Can this machine handle upholstery or heavy canvas? Yes — the DDL-5550NH is engineered for heavy-weight material, with a larger #21 needle and full 13 mm knee lift to accommodate thicker layers.

Does the machine require manual oiling? No. The fully automatic lubrication system handles this via a plunger pump. Simply maintain the proper oil level with Juki New Defrix Oil #2.

Does the price include the table and motor? Yes — the table arrives fully assembled and a servo motor is included, so the machine is ready to sew once positioned and plugged in.

What is the difference between a servo motor and a clutch motor? A servo motor offers precise speed control, runs much quieter, uses far less electricity when idle, and is easier for operators to control. A traditional clutch motor runs at a fixed high speed and consumes more power.

What oil should I use and how often should I check it? Use only Juki New Defrix Oil #2 (or equivalent ISO VG32). Check the oil level regularly and top up as needed; the automatic system does the rest.

Have questions about which DDL-5550 variant matches your material? Our real technicians are available 9–5, Monday through Friday, to help you choose the right configuration before you order. Call 843-903-6299.
