Juki 1181N Table and Motor

Sale!
,

Juki 1181N Table and Motor

Original price was: $1,999.99.Current price is: $1,279.99.

: $1,999.99 (You Save: $720.00)

& Free Shipping

Juki 1181N Table and Motor



• Sewing Speed: 2000 SPM
• Bobbin- M
• Max. Stitch Length: 9 mm
• Weight of machine head: 68 Ibs
• Throat size: 18.78 inches X 7.01 inches/ 477mm × 178mm

  • The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.
  • A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable.
  • The top feed mechanism employs a grease tank and oil wick lubrication mechanism.
  • With its stitch length being as large as 9mm, the machine is applicable to a broader range of sewing processes.
  • The lift of the presser foot, by the knee lifter, is as high as 15mm so as to support processes which require a higher lift of the presser foot such as piping and tape attactching.

Tax Free outside S.C.











Shipping & Delivery Options

Please choose the shipping and delivery options for your commercial machine.

Shipping Region *

Choose your shipping region.

Carolina Forest Vacuum & Sew Freight Shipping Policy

Free shipping does NOT apply to any item that requires freight ground delivery. Item ships from our warehouse on the East Coast. Ground shipments usually arrive within 3-7 days. Freight shipping charges will apply to this item.

Description

Juki 1181N Table and Motor

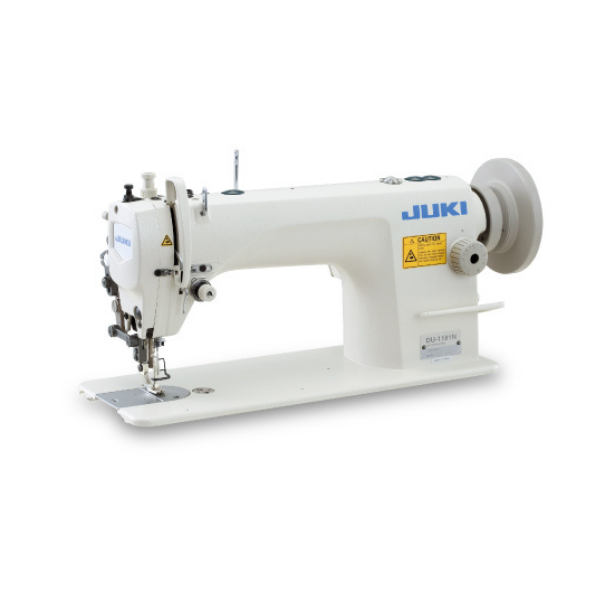

The Juki DU-1181N Sewing Machine

With its powerful top and bottom feed mechanism, the machine smoothy feeds a difficult-to-feed material or multi-layered part of material with pitch error, achieving consistent seam quality. Ideal for pliable leather, medium leather, faux, and medium weight fabrics.

Juki1181sqfront
Juki 1181 Industrial



The The Juki DU- 1181N 1-Needle, Top and bottom-feed, Lockstitch Machine with Double- Capacity Hook.

With its powerful top and bottom feed mechanism, the machine smoothy feeds a difficult-to-feed material or a multi-layered part of material without pitch errors, achieving consistent seam quality.

The higher lift of the presser foot lifts up to 15mm/ 0.59′ making it ideal for bag making.

The machine delivers increased productivity at a sewing speed as high as 2,000 SPM with an 18.78 x 7.008 inch throat.

The bobbin capacity is a double capacity hook not your typical standard size bobbin.

Due to its optimum balance, this machine achieves low-vibration and low-noise, making it ideal for a comfortable work environment. In other words this machine is wonderful for a home environment or a shop.

The stitch pitch can be adjusted in both the normal and reverse directions.

The height and inclination of the feed dog can be adjusted.

The amount of the alternating vertical movement of the walking foot and presser foot is adjusted in a range from 2 to 5mm according to the height of a multi-layered section of material.

The horizontal feed cam, top and bottom feed cam, and top feed cam can be adjusted after opening the rubber caps (three caps) in top of the machine head.



Recommended For:  Pliable Leather, Vinyl, Faux, And Medium Weight Fabrics.

With the top and bottom feed technology, the presser foot aids in pulling the fabric, allowing for medium weight materials to be sewn more easily.

This machine works great for bag making, wallets, and the type of project your domestic machine cannot handle. Not recommended for upholstery materials, or real thick leather. This machine is not for light weight materials.

This product weighs 250 pounds, machine comes disassembled.

All you have to do is add the belt to the motor, assemble spool holder and tension dials.  Additionally,  machine needs to be dropped into table with safety clips.

Returns: Due to the delivery and size of the machine returns are not accepted.

Variations: Due to the nature of industrial sewing machines table colors may vary.

Disclaimer: Industrial machines are tough, but due to their weight there may be some minor scratches on the head or the table during shipping. This is normal when shipping industrial sewing machines.

With its strong top and bottom feed mechanism, the machine insures the smooth feeding of hard-to-feed materials or multilayered sections of materials to achieve consistent seam quality that is free from irregular stitch pitches. The automatic lubricating mechanism dramatically improves maintainability of the machine.



THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.
