JUKI | TL-2200QVP Mini Hi Speed Quilter
Hi Speed Quilter (TL -18 Haruka Replaces this model)

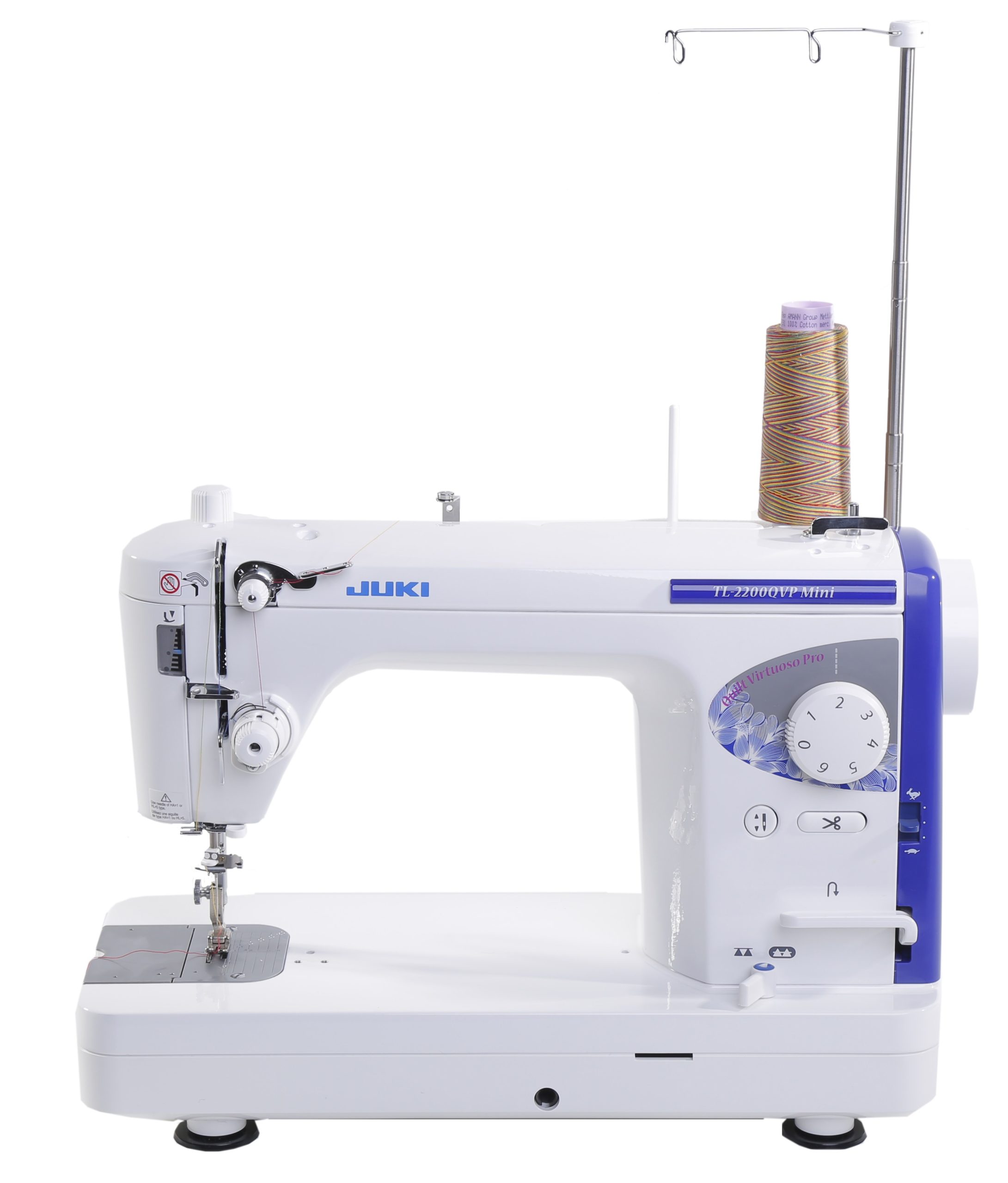

TL-2200QVP Mini is a single needle, lock-stitch, portable sewing machine, constructed of aluminum die-casting to ensure industrial-quality sewing. The TL-2200QVP Mini can handle large quilts with ease!
Maximum Sewing Speed 1500 spm
Easily control your sewing speed from 200 to 1500 SPM with the adjustable slide.
Foot ControllerFoot Controller
with Thread Trimming Function
Automatically trim both needle and bobbin threads
Automatic Thread TrimmerAutomatic Thread
Trims both the needle and bobbin threads simultaneously
Needle Automatic Needle Threader
Automatic Needle Threader, quickly and easily threads needle
Needle Up/Down Control
Change the needle position to up or down as desired by simply pressing a button
Knee Lifter Lever
Hands-free up/down control of the presser foot
Drop Feed Drop Feed
The feed dog may be raised or lowered by simply adjusting the switch. Lowering the feed dog allows you to free motion quilt in any direction with precision and ease.
Large Work Area
Work area up to 23 inches (with auxiliary table attached)
Sewing Speed: Mix. 55 - Max. 1,500SPM
Stitch Length: Max. 6mm
Lift of the Presser Foot: By lever Max. 9mm, by knee lifer Max. 12mm
Needle
HA x 1 (130/705H) #7-#18 (HL x 5 #9-#16)
Dimensions: 452(W)x350(H) x 219(D)mm
Weight (machine only): 11.5Kg / 25.4Lb
Auxiliary table (dimensions): 590(W) x 355(D)mm
Lamp: LED
Hook: Horizontal-axis Full-rotary Hook
Accessories
1/4" Presser Foot
Side Guide Creates 1/4 inch seams for perfect piercing.
Even Feed Foot
Powerfully feeds multiple fabric layers from both top and bottom without shifting.
Quilt Guide for Even Feed Foot
Measures rows for evenly spaced quilt lines.
Quilting Foot Front Open Toe
Allows for more visibility during free motion quilting.
1/5" Quilting Foot
Use for free motion quilting to glide smoothly and evenly over quilt layers.
1/4" Quilting Foot
Create equally spaced free motion quilting lines, perfect for echo quilting.
Hemming Foot
For hemming stitch with rolled fabric (3mm)
Zipper Attaching Foot
Presser position can be moved to right or left.
Auxiliary Table
Easy to handle large work pieces or fabric rolls for sewing and quilting
Foot Switch Stopper
The heel side switch function can be disabled.
Knee Lifter Lever
Allows you to lift/lower the presser foot without using your hands
Options
Compensating Foot (Right 7.0mm)
To sew 7.0mm from overlapped seam
Quilting Foot Side
Open Toe Free Motion Table
Designed to be used with the Juki Free Motion Table, this foot is open for optimal visibility. Part No. 40166734
Solid Cording Foot (Right/Left)
For edge sewing and fastener attaching
Hinged Cording Foot
Suitable for edge sewing and overlapped seam
Hinged Zipper Foot
Narrow width of foot feeds zipper smoothly
Piping Foot
To attach corded piping
Smooth Foot
For hard-to-feed fabrics such as vinyl cloth, leather
Foot & Throat Plate for Thin Fabric
The small hole of throat plate prevents material puckering
Throat Plate for Thick Fabric
The large hole of throat plate is suitable for thick needle
Magnetic Gauge
To guide edge of fabrics
Echo Quilting Foot
Echo quilting is easy with this free motion quilting foot. Built in guide lines measure the rows for evenly spaced quilt lines. Part No. 40166739
Compensating Foot (Right/Left 1.5mm)
For sewing side of overlapped seam (1.5mm )
Swing Gauge
To guide edge of fabrics (set by 2 screws)
1/4" Quilting Foot (for Ruler)
Using this foot with quilt rulers allows you to create precision designs and perfect straight lines. Part No. 40166729
Free Motion Table
*Please contact your local Juki Dealer for Free Motion Table information.
Invisible Zipper Foot
For installation of concealed zipper
Grip & Stitch™
Make free motion quilting easy and fun with JUKI's new Grip & Stitch™ quilting disks! Each pack comes with two different sized disks that provide outstanding support. With the larger disk in your left hand and the smaller disk in your right hand, place the disks on top of your quilt and begin quilting. Create funky spirals, beautiful feathers, and more!
