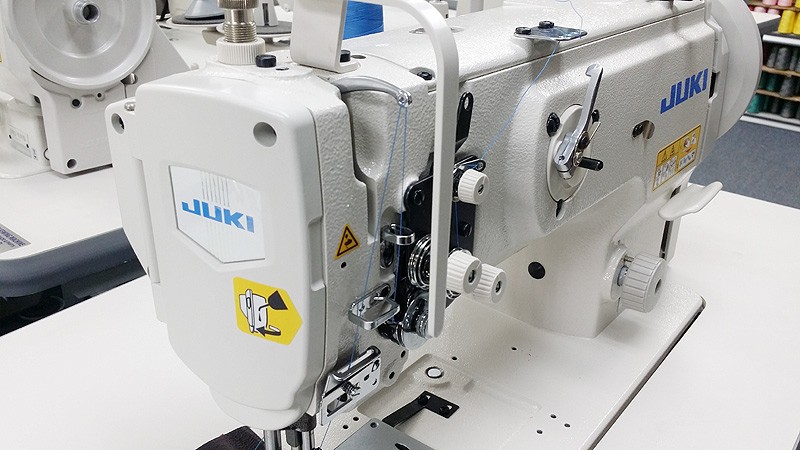

Juki LU-1508NS Industrial Walking Foot Sewing Machine, Vertical Axis Hook, Servo Motor
Product Highlights
- Max. Sewing Speed: 2500 stitches/minute
- Max. Stitch Length: 9mm
- Unit dimensions (LxWxH): 48 inches by 20 inches by 48 inches
- Needle: 135 X 17
- 110V with quiet servo motor
- Needle: 135 X 17. Alternating vertical movement : 2.5～6.5mm
N Stands for the Color: White
S Stands for Standard Heavy Duty
S Stands for Standard Heavy Duty
- Single Needle
- Needle Feed And Walking Foot
- 2500 Stitches Per Minute
- New Rectangular Feed Prevents Gathering
- Includes Table, Stand, And Motor
- Handles Heavyweight Materials
- Industrial Sewing Machine
- US Warranty 90 Days labor on defects in materials and workmanship.
- N Stands for the Color: White
S Stands for Standard Heavy Duty
- Single Needle
- Needle Feed And Walking Foot
- 2500 Stitches Per Minute
- New Rectangular Feed Prevents Gathering
- Includes Table, Stand, And Motor
- Handles Heavyweight Materials
- Industrial Sewing Machine
- US Warranty 90 Days labor on defects in materials and workmanship.
- Non-US Warranty: 30 days parts and labor
Specifications
Click HERE for LU1508 specs included in Juki 1500 Series Brochure
Click HERE for LU1508 Part List Manual
- New mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without the risk of stitch gathering
- Reduced lift of feed dog helps prevent the material from flopping and reduces operating noise and vibration
- Compared with elliptical feed, rectangular feed helps reduce gathered stitches
- With adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism and a unison feed mechanism helps feed heavyweight materials powerfully and smoothly
- Well tensed seams are consistently produced without pitch errors
- With its maximum stitch length of 9 mm, the machine can be applied to a broader range of uses
- Stitch length can be easily selected by the stitch dial
- Many improved features offer enhanced operation such as an easy-to-observe area around the needle, placement of bobbin winder on the front face, and a large hand wheel
- Knee-lifter mechanism built-in to bed reduces pressure required to operate the knee-lifter
- Full-open-type top design makes it possible to fully open the top of the machine arm and helps make adjustment easy without tilting the machine head
- Alternating vertical movement mechanism prevents irregular stitches
- High 16 mm presser foot lift enables easy material handling
- Since machine incorporates a vertical-axis double-capacity hook, the frequency of bobbin thread replacement is reduced, further increasing efficiency
- If thread gets caught in the hook, the safety device is automatically engaged, preventing possible hook damage
- Pressing the reset button will immediately return the machine back to the normal state
- Maximum stitch length: 9 mm
- Needle bar stroke: 36 mm
- Alternating vertical movement: 2.5 mm – 6.5 mm
- Thread take-up: slide type
- Hook: Vertical-axis, double-capacity hook
- Needle: 135×17 Nm160
- Juki LU1508 Bobbin, Juki Part Number B9117-563-000, no generic available that we can find.
- Thread: #30
- #5, B46
- B138
- Weight: 93.7 lbs
