Juki LU-1508H No Tax

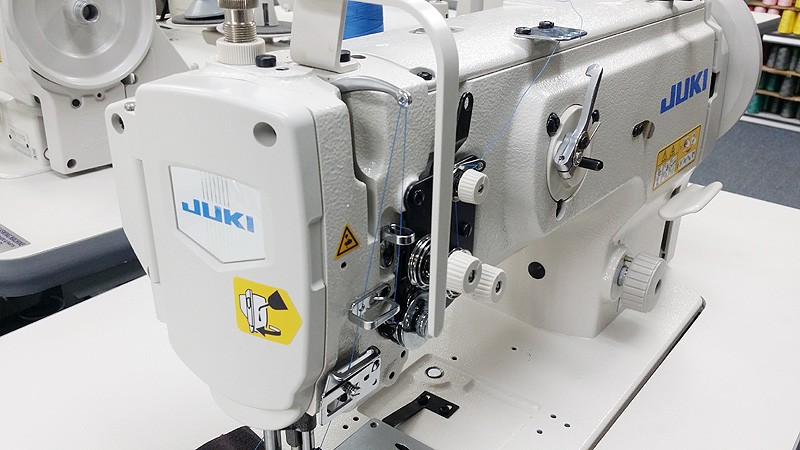

Juki LU-1508NH Heavy Duty Walking Foot Needle Feed Sewing Machine JAPAN
Includes Large M Bobbin, 9/16mm Presser Foot Lift, 10mm Stitch Length, Power Stand, 2000SPM, Uses 190R Needles
The H in 1508H means very heavy duty, with longer stroke 190R Needles which allows for thicker fabrics and higher foot lift, a bigger hole in needle plate for thicker threads, and bigger teeth on the feed dogs which allow better feeding on thicker fabrics, etc compared to 1508N and 1541N that take shorter stroke 135×17 needles.
Model name LU-1560N LU-1561N LU-1560N-7 LU-1561N-7 LU-1565N
— With automatic thread trimmer With organized split needle bar
Application Heavy-weight
Max. sewing speed 2,500sti/min* 2,000sti/min*
Max. stitch length 9mm (forward/backward)
Needle bar stroke 36mm 33.4mm
Lift of the presser foot By hand: 9mm, By knee: 16mm (max.) By hand: 9mm, Auto: 16mm By hand: 9mm, By knee: 13mm (max.)
Auto-lifter Option Provided as standard
(pneumatic auto-lifter: AK-147B) Option
Needle gauge
Organized split needle bar — Provided as standard
Alternating vertical movement 2.5~6.5mm 1~6.5mm 2.5~6.5mm
Dial for adjustment of alternating
vertical movement — Provided as standard —
Thread take-up Slide type
Hook Vertical-axis double-capacity hook
Needle (at the time of delivery) 135×17 (Nm160) Nm125~Nm180
Thread #30~#5, B46~B138, Nm=60/3~20/3
Locus of feed Rectangular feed
Needle thread tension box Single-tension method
Pitch changing method By dial
Bobbin thread winder Built on the machine head
Knee-lifter mechanism Built on the machine head — Built on the machine head
Safety mechanism Provided as standard (reset with the push of a button)
Lubrication Automatic By an oiler (hook: automatic)
Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Distance from needle to machine arm 255mm
Bed size 517mm×178mm
Weight of the machine head 45kg 51kg 45kg
Automatic reverse feed function Option Provided as standard —
Compressed air and air consumption — 0.5MPa {5kg/cm2} • 0.3N /min —
Power requirement — Single-phase 100~120V, 220~240V
3-phase 200~220V, 220~240V —
Power consumption — 550VA —
Model name LU-1508NS, LU-1509NS LU-1508NH, LU-1509NH LU-1510N LU-1510N-7, LU-1511N-7
— — — With automatic thread trimmer
Application Heavy-weight Extra heavy-weight Heavy-weight
Max. sewing speed 2,500sti/min* 2,000sti/min* 2,500sti/min* 3,000sti/min*
Max. stitch length 9mm (forward/backward) 10mm (forward/backward) 9mm (forward/backward)
Needle bar stroke 36mm 38mm 36mm
Lift of the presser foot By hand: 9mm, By knee: 16mm (max.) By hand: 9mm, Auto: 16mm
Auto-lifter Option Provided as standard
(pneumatic auto-lifter: AK-147B)
Alternating vertical movement 2.5~6.5mm 1~6.5mm
Dial for adjustment of alternating
vertical movement — Provided as standard
Thread take-up Slide type
Hook Vertical-axis double-capacity hook
Needle 135×17 Standard 190R or 135×17 135×17
(at the time of delivery) (Nm160) Nm125~Nm180 (Nm160) Nm125~Nm200 (Nm160) Nm125~Nm180
Thread #30~#5, B46~B138, #20~#1, B69~B207, #30~#5, B46~B138,
Nm=60/3~20/3 Nm=40/3~8/3 Nm=60/3~20/3
Locus of feed Rectangular feed Complete rectangular feed Rectangular feed
Needle thread tension box Dual-tension method
Bottom-feed micro-adjustment
mechanism — Provided as standard
Pitch changing method By dial
Bobbin thread winder Built on the machine head
Knee-lifter mechanism Built on the machine head —
Safety mechanism Provided as standard (reset with the push of a button)
Lubrication Centralized oil wick lubrication (hook: automatic) Automatic
Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Distance from needle to machine arm 255mm
Bed size 517mm×178mm
Weight of the machine head 42.5kg 44.5kg 43kg 48kg
Automatic reverse feed function Option Provided as standard
Compressed air and air consumption — 0.5MPa {5kg/cm2
} • 0.3N /min
Power requirement — Single-phase 100~120V, 220~240V
3-phase 200~220V, 220~240V
Power consumption — 550VA
Note: Assembled Table , Stand and Motor. The very best heavy duty compound feed, walking foot and needle feed machine for applications including auto upholstery.N Stands for the Color: White
H Stands for Extra Heavy Duty 10-15% heavier duty than the Standard NS Version, with a longer needle and higher stroke.
- Single Needle
- Needle Feed And Walking Foot
- 2500 Stitches Per Minute
- New Rectangular Feed Prevents Gathering
- Includes Table, Stand, And Motor
- Handles Heavyweight Materials
- Industrial Sewing MachineThe Juki LU 1508 replaces the very successful Juki 562/563 model, which was sold for over 20 years and is still is use with many manufactures.This new model has many new features which Juki has researched & tested thought-out the heavy-weight fabric industry.It is a general purpose needle feed, walking foot machine for use on medium-heavy weight materials and is suited to sewing, for example, car seats, carpets, general upholstery and leather articles etc.FEATURES:
- New mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without the risk of stitch gathering
- Reduced lift of feed dog helps prevent the material from flopping and reduces operating noise and vibration
- With adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism and a unison feed mechanism helps feed heavyweight materials powerfully and smoothly
- Well tensed seams are consistently produced without pitch errors
- With its maximum stitch length of 9 mm, the machine can be applied to a broader range of uses
- Stitch length can be easily selected by the stitch dial
- Many improved features offer enhanced operability such as an easy-to-observe area around the needle, placement of bobbin winder on the front face, and a large hand-wheel
- Knee-lifter mechanism built-in to bed reduces pressure required to operate the knee-lifter
- Full-open-type top design makes it possible to fully open the top of the machine arm and helps make adjustment easy without tilting the machine head
- Alternating vertical movement mechanism prevents irregular stitches
- High 16 mm presser foot lift enables easy material handling
- Since machine incorporates a vertical-axis double-capacity hook, the frequency of bobbin thread replacement is reduced, further increasing efficiency
- If thread gets caught in the hook, the safety device is automatically engaged, preventing possible hook damage
- Pressing the reset button will immediately return the machine back to the normal state
- US Warranty 90 Days labor on defects in materials and workmanship.
- Non-US Warranty: 30 days parts and labor
Click HERE for Parts List Manuals
- New mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without the risk of stitch gathering
- Reduced lift of feed dog helps prevent the material from flopping and reduces operating noise and vibration
- Compared with elliptical feed, rectangular feed helps reduce gathered stitches
- With adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism and a unison feed mechanism helps feed heavyweight materials powerfully and smoothly
- Well tensed seams are consistently produced without pitch errors
- With its maximum stitch length of 9 mm, the machine can be applied to a broader range of uses
- Stitch length can be easily selected by the stitch dial
- Many improved features offer enhanced operation such as an easy-to-observe area around the needle, placement of bobbin winder on the front face, and a large hand wheel
- Knee-lifter mechanism built-in to bed reduces pressure required to operate the knee-lifter
- Full-open-type top design makes it possible to fully open the top of the machine arm and helps make adjustment easy without tilting the machine head
- Alternating vertical movement mechanism prevents irregular stitches
- High 16 mm presser foot lift enables easy material handling
- Since machine incorporates a vertical-axis double-capacity hook, the frequency of bobbin thread replacement is reduced, further increasing efficiency
- If thread gets caught in the hook, the safety device is automatically engaged, preventing possible hook damage
- Pressing the reset button will immediately return the machine back to the normal state.
- Maximum stitch length: 9 mm
- Needle bar stroke: 36 mm
- Alternating vertical movement: 2.5 mm – 6.5 mm
- Thread take-up: slide type
- Hook: Vertical-axis, double-capacity hook
- Thread: #30
- #5, B46
- B138
- Weight: 93.7 lbs
- extra large steel hand wheel with a diameter of 175 mm
- Juki LU1508H Needle System SY3355 Juki Part No. MC-3720016-00 or generic 190R-Long
- Juki LU1508 Bobbin, Juki Part Number B9117-563-000, no generic available that we can find.
