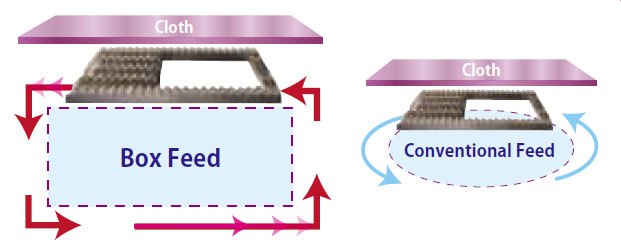

In order to provide beautiful seams and outstanding feed performance, Juki adopted box feed system. The conventional feed mechanism is oval motion. This eliminates material shrinking and shifting. The accurate feeding system provides superior stitch quality for a variety of light to heavy weight fabrics.

DIRECT STITCH PATTERN SELECTION

Frequently used stitch patterns can be selected directly through the Direct Select mode: Piecing, Applique, Zigzag stitch for applique

LIGHT WEIGHT MATERIAL

No Fabric shrinkage even sewing on extra light weight materials

THICK WEIGHT MATERIAL

Capability to sew from light to heavy weight materials. Thick handles can be sewn with ease

WIDE SEWING SPACE – EXTENDED SEWING TABLE

HZL-F series has a wider underarm space, with a wider table it is more enjoyable and comfortable to work with large projects.

FREE MOTION SEWING

With Stable Thread Tensions

KNEE LIFTING LEVER

Presser foot can be raised and lowered by the knee-lifting lever. Presser foot lift is up to 12 mm when the lever is used.

DUAL LED

LED lights brighten the needle area and sewing area for better material handling.

RANDOM STITCHES

F600 will create the width of select quilting stitch patterns automatically and at random. This will give your quilting project an enjoyable look without any hassle.

FOOT CONTROL

The new HZL-F series trims both needle and bobbin threads automatically by pressing the heel side of the foot controller. With this feature you can concentrate on your project while automatically cutting the thread.

POWERFUL FEEDING

The HZL-F series has powerful feeding thanks to a special steel feed dog and improved presser foot construction. Heavy material projects, such as hemming denim jeans, can be sewn with ease.

SENSOR METHOD BUTTONHOLE

Using a unique sensor method, HZL-F series sews beautiful buttonholes regardless of the type of material and overlapped sections.

BUTTONHOLE

16 Types of buttonholes are available for your needs

CUTTING WIDTH ADJUSTMENT

Now it is possible to adjust the cutting width of buttonholes in 3 steps.

AUTOMATIC NEEDLE THREADER

Needle can be threaded quickly and easily.

EASY BOBBIN THREAD WINDING

Independent motor winds the bobbin thread.

QUICK BOBBIN PREPARATION

The bobbin preparation is easy. Just follow the guide and it is not necessary to pull up the bobbin thread.

PRESSER FOOT PRESSURE ADJUSTMENT

Presser foot pressure can be adjusted for better sewing results according to the type of materials to be sewn.

Juki Exceed HZL-F600 List of Features

• Large variety of patterns and stitches – decorative/utility/alphabet
• 255 Sewing Patterns and 4 Fonts
• Open Toe Presser Foot
• Patchwork Presser Foot
• Edge Sewing Presser Foot
• Large LCD display (33mm x 66mm) and easy pattern selection
• Highest quality industrial style button holes – 16 types
• Large, wide, work surface (8″ wide x 12-1/4″ long) 4″ larger then the average workspace
• Easy Threading from the seated position
• One finger, automatic needle threading
• Automatic thread trimming by push button
• Exclusive automatic thread trimming by heel motion of foot pedal
• High speed sewing up to 900 spm
• Power at low speed sewing (80 spm)
• Walking foot for sewing multiple layers including denim and quilting
• Durable quilting foot and quilt guide
• Precision feeding system
• Precise and immediate needle stop
• Exclusive bobbin winder
• 2 LED lights for illumination
• Reliable, stable and quiet running

Juki Exceed HZL-F600 Specifications

• Stitch Width Control: Up to 7mm
• Stitch Length Control: Up to 5mm
• Sewing Speed: Up to 900 SPM (stitches per minute)
• Weight: 21.6 lbs
• Dimensions: 17.5″ (W) x 11.4″ (H) x 8.2″ (D)

Included Accessories

• 10 Snap-on Presser Feet
  • Standard
  • Overcasting
  • Blindhem
  • Auto Buttonhole
  • Manual Buttonhole
  • Patchwork
  • Open Toe
  • Teflon
  • Edge/Joining
  • Zipper
  • Walking Foot
• Hard Case
• Knee Lift Lever
• Wide Extension Table
• 4 Bobbins
• Eyelet Punch
• Quilt Guide
• Small, Medium, Large Spool Caps
• Special Screw Driver
• Auxiliary Spool Pin
• Seam Ripper
• Twin Needles
