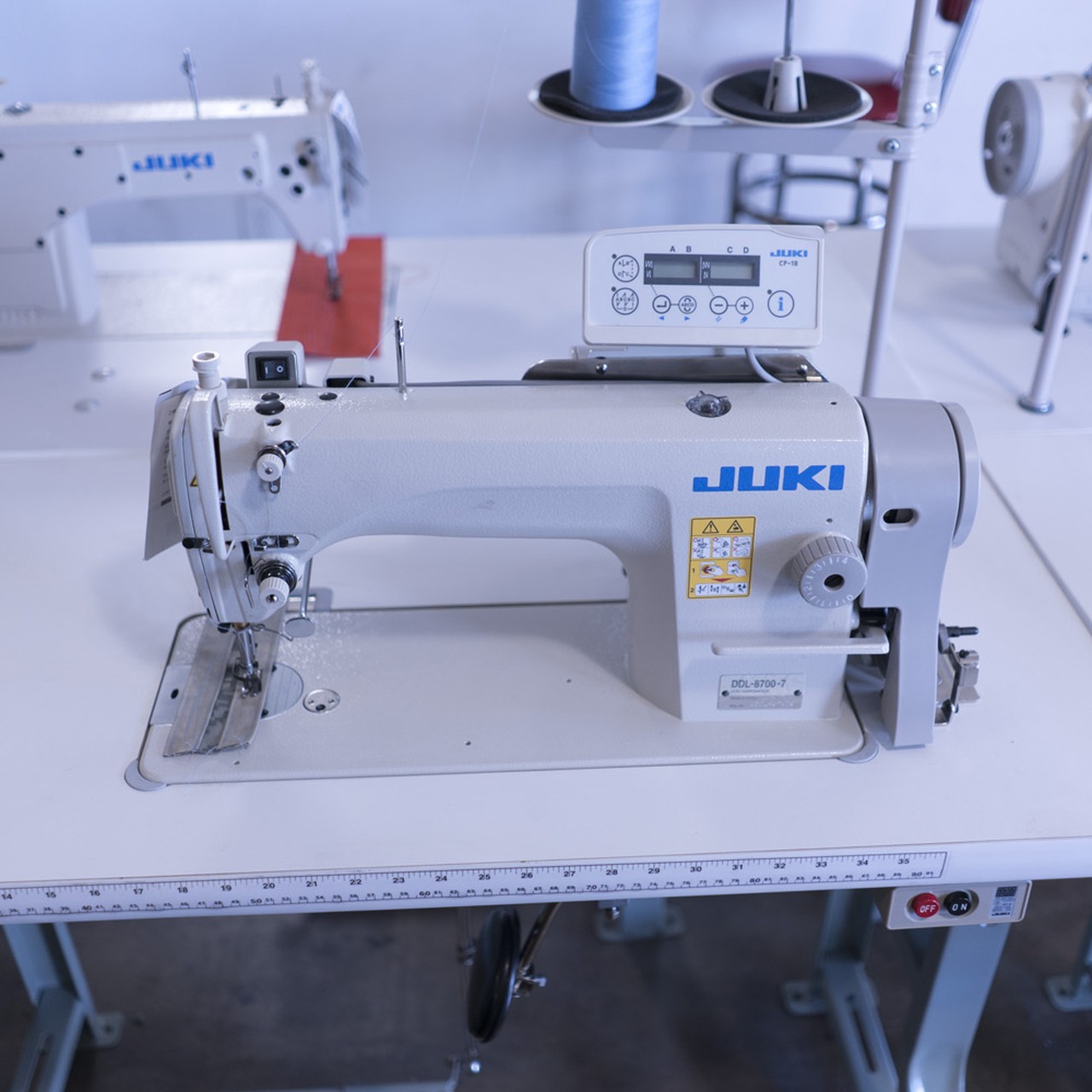

JUKI DDL 8700-7 Industrial Sewing Machine With Table and Motor

Juki DDL 8700-7 With Table and Motor.

The JUKI DDL-8700-7 Single Needle Drop Feed Automatic Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp.

Bobbin counter display mode. The operator is notified that the bobbin needs to be replaced before the bobbin thread runs out. This feature helps avoid running out of thread mid seam.

 Thread trimming mechanism that performs speedy and reliable thread trimming speeding up production.

SPECIFICATIONS:

• Application: Medium-Weight material
• Other choices for different material weight.
• Please note in message area at check out if you desire a varation of this model listed above.
• Max. Sewing Speed: 5000 Stitches per Minute.
• Max. Stitch Length: 4mm.
• Needle Bar Stroke: 30.7mm.
• Lift of Presser Foot by Hand: 5.5 mm.
• Lift of Presser Foot by Knee: 13 mm.
• Unit dimensions: (LxWxH): 48 inches by 20 inches by 48 inches.
• Needle: DB X 1, sizes 9-18 110V with Juki M92 servo motor, SC920 control box, and CP-18 panel.

Heavy Duty construction- features.

• Feed Dog: 4-row.
• Hook: Automatic-lubricating full-rotary hook.
• Made to be duable for industrial use.
• Lubrication: Automatic.
• Lubricating Oil: JUKI MACHINE OIL 7 (equivalent to ISO VG7).
• Automatic Reverse Feed Function: Provided as standard.
• Control Box:SC-920C: Compact-size servomotor M92 (450W).
• Machine Motor: Single-phase 100～240V, 3-phase 200～240V.
• Power Requirement: Single-phase 100～240V, 3-phase 200～240V.
• Power Consumption: 320VA.
• Total Weight: Machine head: 30kg / 35kg (with AK), SC-920C: 3kg, M92: 3.5kg.

THE ADVANTAGES OF A SERVO MOTOR:

• They use up to 90% less power than clutch motors
• They are 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust.
• No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching. Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

INCLUDES FULLY ASSEMBLED TABLE AND SERVO MOTOR

Standard model of Juki's 1-needle lockstitch machines with automatic thread trimmer.The optimum-balance and highly rigid machine head were created using the latest 3D-CAD design technology.

Thanks to its low vibration and low noise feature, the machine head provides the operator with a comfortable work environment. In addition, the distance from the machine arm to the needle on the front of the machine head is sufficiently wide to allow easy handling of the sewing material. The machine  features, high-speed stitching performance 5,000sti/min, excellent stitching performance, ease of operation, and reliability.
