JUKI | DDL 5550 Industrial Sewing Machine Head Only

JUKI | DDL 5550 Industrial Sewing Machine Head Only

Original price was: $1,519.99.Current price is: $1,065.00.

Juki DDL 5550 Machine

No Tax (out side S.C.) – HEAD ONLY will ship UPS call for shipping cost.

Brand: Juki Application: For light-medium weight materials Bed Size: 517mm x 178mm Feed Dog: 3-Row
Hook: Automatic-lubricating full-rotary hook Max. Sewing Speed: 5500 rpm/spm Max. Stitch length: 5mm
Thread take-up: Slide Type Needle System (at time of delivery): DB x 1(#14)#9
#18 For JE:134(Nm90) Lubrication: Fully automatic lubrication system by means of plunger pump
Lubricating Oil: Juki New Defrix Oil #2(Equivalent to ISO VG32)
Lift of Presser Foot by Hand: 5.5 mm
Lift of Presser Foot by Knee: 13 mm
Weight of Machine Head: 75 LBS.
Thread Material: Polyester
Made In: Japan Bed Size is 7″ x 18 25/32″

Buy Now

991 in stock

Optional Addon

Caster wheel with Tables (+$125.00)

Optional Shipping Insurance

This optional service is available for all products EXCEPT INDUSTRIAL MACHINES.

I DO NOT WANT SHIPPING INSURANCE

Add Shipping Insurance for this Item (+$29.99)

THIS OPTION IS NOT AVAILABLE FOR INDUSTRIAL MACHINES. You agree to pay $29.99 for shipping insurance.

I understand this is an INDUSTRIAL MACHINE and shipping insurance is NOT AVAILABLE.

We apologize that we are unable to offer shipping insurance on industrial machines.

Product price:	$1,065.00
Total options:
Order total:

JUKI DDL-5550 Industrial Lockstitch Sewing Machine – HEAD ONLY No Tax Outside S.C. | Made in Japan

For decades, the JUKI DDL-5550 has been a benchmark industrial lockstitch machine trusted by tailors, upholsterers, and production shops. This listing is for the machine head only — ideal if you already have a compatible industrial table and motor, or prefer to source those separately.

renatossewing.com

JUKI DDL-5550N

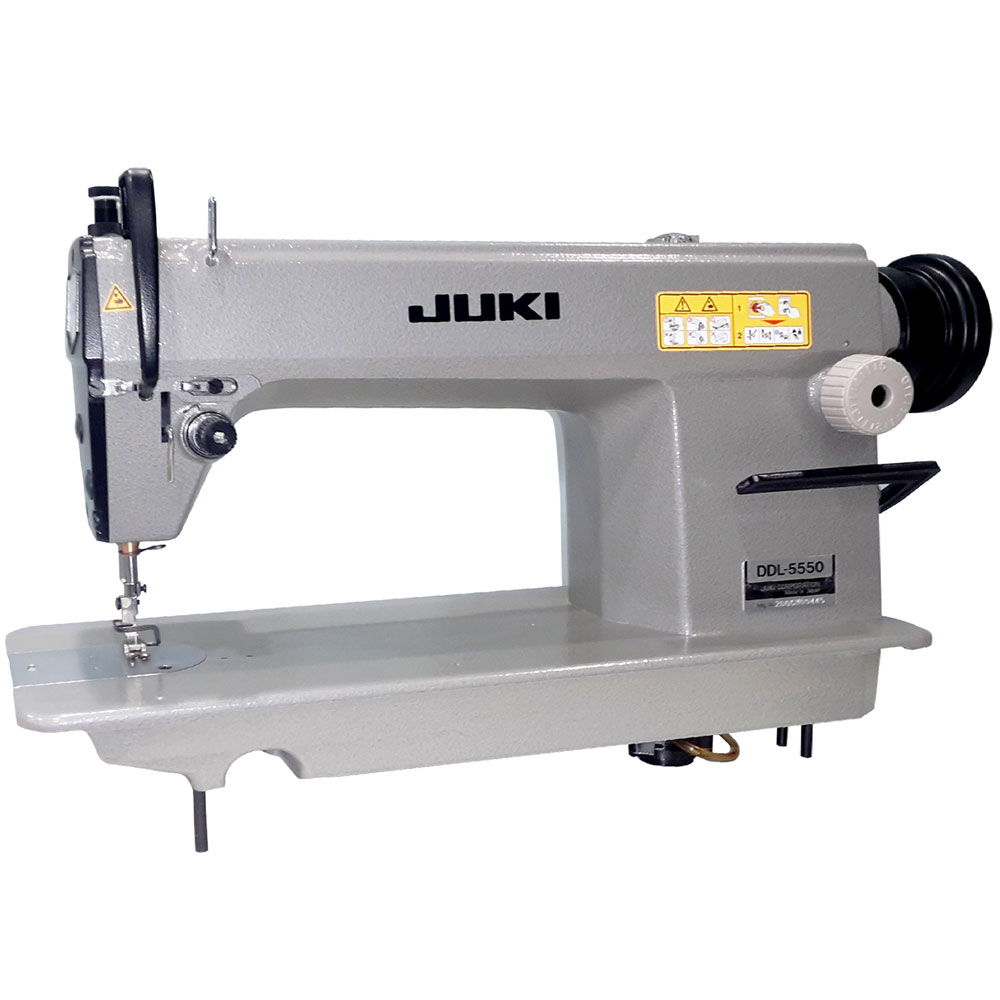

Juki DDL-5550N machine head (Made in Japan)

Understanding the DDL-5550 Platform

“DDL-5550” covers a small family of related machines. All share the same core lockstitch design, automatic lubrication, and Japanese engineering, but each variant is tuned for different fabric weights. Choosing the correct model is essential for stitch quality and long-term performance.

Key Features & Benefits

Automatic-lubricating full-rotary hook — The plunger-pump system oils critical components automatically, reducing maintenance and extending machine life.
3-row feed dog — Provides more even fabric control and consistent stitches across changing thicknesses.
Slide-type thread take-up — Delivers smoother tension and fewer skipped stitches or puckers.
Improved thread path and feed mechanism — Better response to material changes, ideal for mixed-fabric production.
Dual presser foot lift — 5.5 mm by hand and up to 13 mm by knee for easier handling of layers.
Made in Japan — Built to industrial standards for durability and reliability.

youtube.com

Threading Juki industrial single needle sewing machine (Top Thread)

Close-up of the tension assembly and thread path on a Juki industrial lockstitch head

Choosing the Right Model

Please specify the exact model (N, NA, or NH) in the order notes at checkout.

Model	Application	Max Speed	Max Stitch Length	Knee Lift	Needle	Best For
DDL-5550N-7 / N	Medium-weight	5,000–5,500 SPM	4–5 mm	13 mm	DB×1 (#14), Nm75–90	General apparel, shirts, trousers
DDL-5550NA-7 / NA	Light-weight	4,000 SPM	4 mm	9 mm	DA×1 (#9), Nm65	Delicate garments, linings, silks
DDL-5550NH-7 / NH	Heavy-weight	4,000 SPM	5 mm	13 mm	DB×1 (#21), Nm130	Upholstery, canvas, multi-layer

Full Specifications (Machine Head)

Feature	Detail
Bed Size	517 mm × 178 mm (≈ 7" × 18 25/32")
Feed Dog	3-row
Hook	Automatic-lubricating full-rotary hook
Lubrication	Fully automatic, plunger pump system
Recommended Oil	Juki New Defrix Oil #2 (ISO VG32 equivalent)
Presser Foot Lift (Hand)	5.5 mm
Presser Foot Lift (Knee)	9–13 mm (model dependent)
Max. Sewing Speed	Up to 5,500 SPM
Max. Stitch Length	Up to 5 mm
Needle System	DB×1 / DA×1 (model dependent)
Machine Head Weight	Approximately 75 lbs
Made In	Japan

Who This Head-Only Option Is Best For

Best for

Shops that already own a compatible industrial table and motor
Buyers who want to pair the head with a preferred servo motor or custom stand
Replacement heads for existing DDL-5550 setups

Not ideal for

First-time industrial machine buyers who need a complete ready-to-sew package (see our full Table + Motor version)

Shipping & Important Notes

The Juki DDL-5550 machine head weighs approximately 75 lbs.

When the total packaged weight remains under 75 lbs, this head-only unit ships via UPS.
No liftgate or loading dock is required for UPS shipments.
If the packaged weight reaches or exceeds 75 lbs, the order moves to commercial freight (additional charges apply and will be disclosed before shipping).

Minor cosmetic marks can occur during shipping and are not grounds for return. Contiguous U.S. shipping only.

Warranty

Juki industrial sewing machines are covered by a limited manufacturer warranty of 90 days on defects in materials and workmanship when purchased from an authorized dealer.

Warranty protection requires purchase from an authorized Juki dealer and service performed by qualified technicians. Unauthorized service or non-genuine parts can void coverage. Carolina Forest Vac & Sew is an authorized Juki dealer.

Frequently Asked Questions

Do I need a special table or motor for this head? Yes. This is the machine head only. It requires a compatible industrial table with the correct cut-out and a suitable motor (servo recommended for best control).

Which model should I order? Specify N (medium), NA (light), or NH (heavy) in the order notes so we send the correct configuration.

Is the oil system the same as the full package? Yes — fully automatic lubrication with Juki New Defrix Oil #2.

Do I need a liftgate or loading dock? No. When shipping via UPS (under 75 lbs packaged weight), no liftgate or loading dock is required.

Have questions about compatibility or which variant you need? Call our technicians at 843-903-6299 (Mon–Fri, 9–5). We’re happy to help before you order.

→ Prefer the complete package? See our DDL-5550 with Fully Assembled Table & Servo Motor.
