Consew CN2093R-DD Zig Zag Table and Motor
-
FEATURES
- Direct Drive Built-In Servo Motor
- Variable Speed Control
- Digital Controls
- Automatic Lubrication
- Horizontal Axis Rotary Hook – Front Load
- Reverse Stitching
- Combination Zig-zag And Straight Stitcher

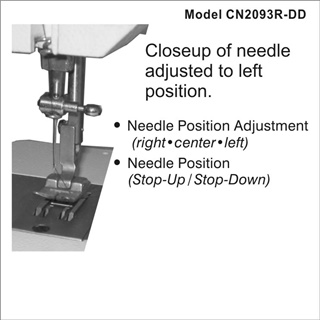

- Needle Position Adjustment (right•center•left)
- Needle Position (stop-up /stop-down)
- Metal gears (hardened steel)
Click to access CN2093R-DD%202024C.pdf

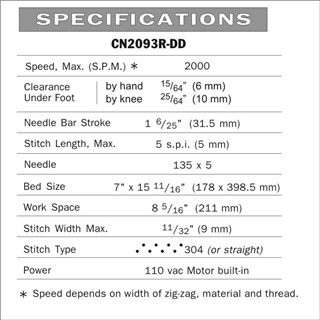

SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | 304/301 |
| Speed, Max (S.P.M.) | 1800 |
| Motor Type | Direct Drive Internal |
| Clearance Under Presser Foot | Foot 25/64” (10 mm) , Hand 15/64” (6 mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 8 5/16″ (211mm) |
| Needle | 135 x 5 |
| Bed Size | 7″ 15 11/16″ (178mm x 398.5mm) |
| Needle Bar Stroke | 1 6/25″ (31.5mm) |
| Stitch Width, Max | 11/32″ (9mm) |
