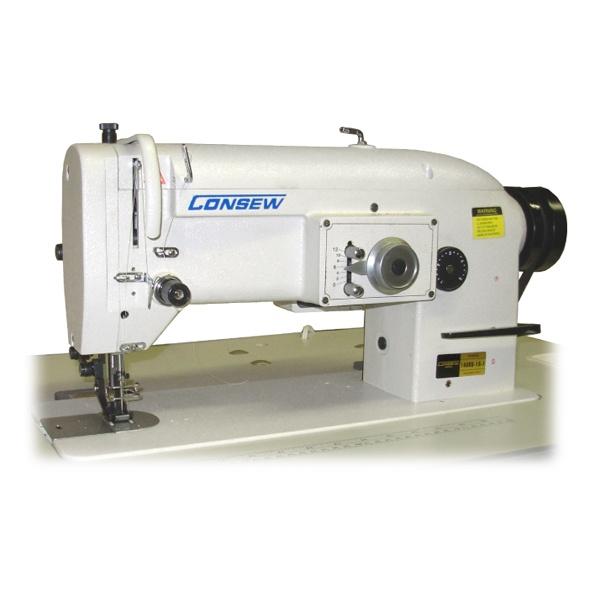

Consew 146RB-1A-1 Zig Zag With Stand and Motor
APPLICATIONS
- For sewing medium to heavy weight fabrics that are difficult to feed when sewng.
- For such materials and products as wet suits, shoes, boots, leather, tarpaulins. Federal Stitch 304
FEATURES
- Large bobbin and horizontal axis transverse rotary hook
- Wide zig-zag
- Upper feed mechanism helps avoid slippage when sewing
- Reverse stitching
- Stitches per minute – 2500*
- Optional: Interchangeable between 1A, 2A & 3A stitches; Additional parts required (not included).
ADDITIONAL INFORMATION
Electronic Servo Motor: 0 – 3450 RPM
Premier CSM550-1: 550 Watts, ¾ Horsepower, 110 V., Single-Phase, Energy Saving, Electronic Servo Motor.
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2500 |
| Clearance Under Presser Foot | 25/64″ (10mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10″ (255mm) |
| Needle | 135 x 17 |
| Bobbin | Metal 212O34-312 Pre-wound M |
| Bed Size | 7″ 18 7/8″ (178m x 480mm) |
| Needle Bar Stroke | 1-11/32″ (34mm) |
| Hook | B79 |
| Zig-Zag Stitch Width | 3/8″ (9.5mm) |
