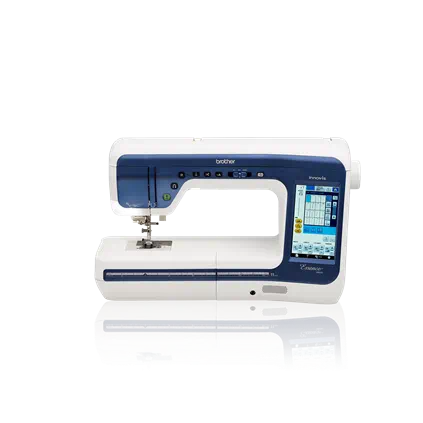

Brother VM 52OO Combo Machine
- 715 built-in sewing stitches
- 318 embroidery designs
- 8” x 12” maximum embroidery area

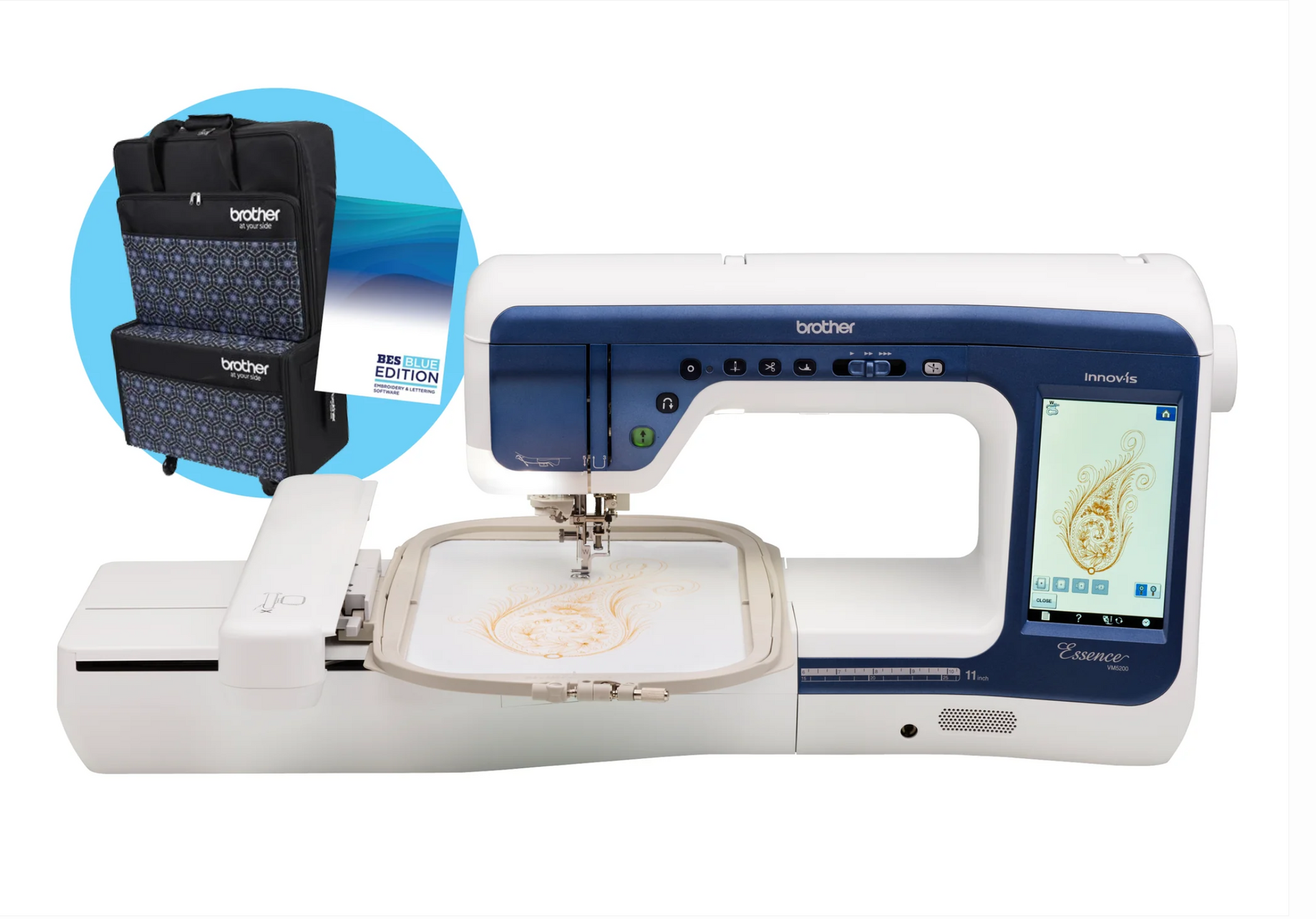

- Bonus Luggage Set

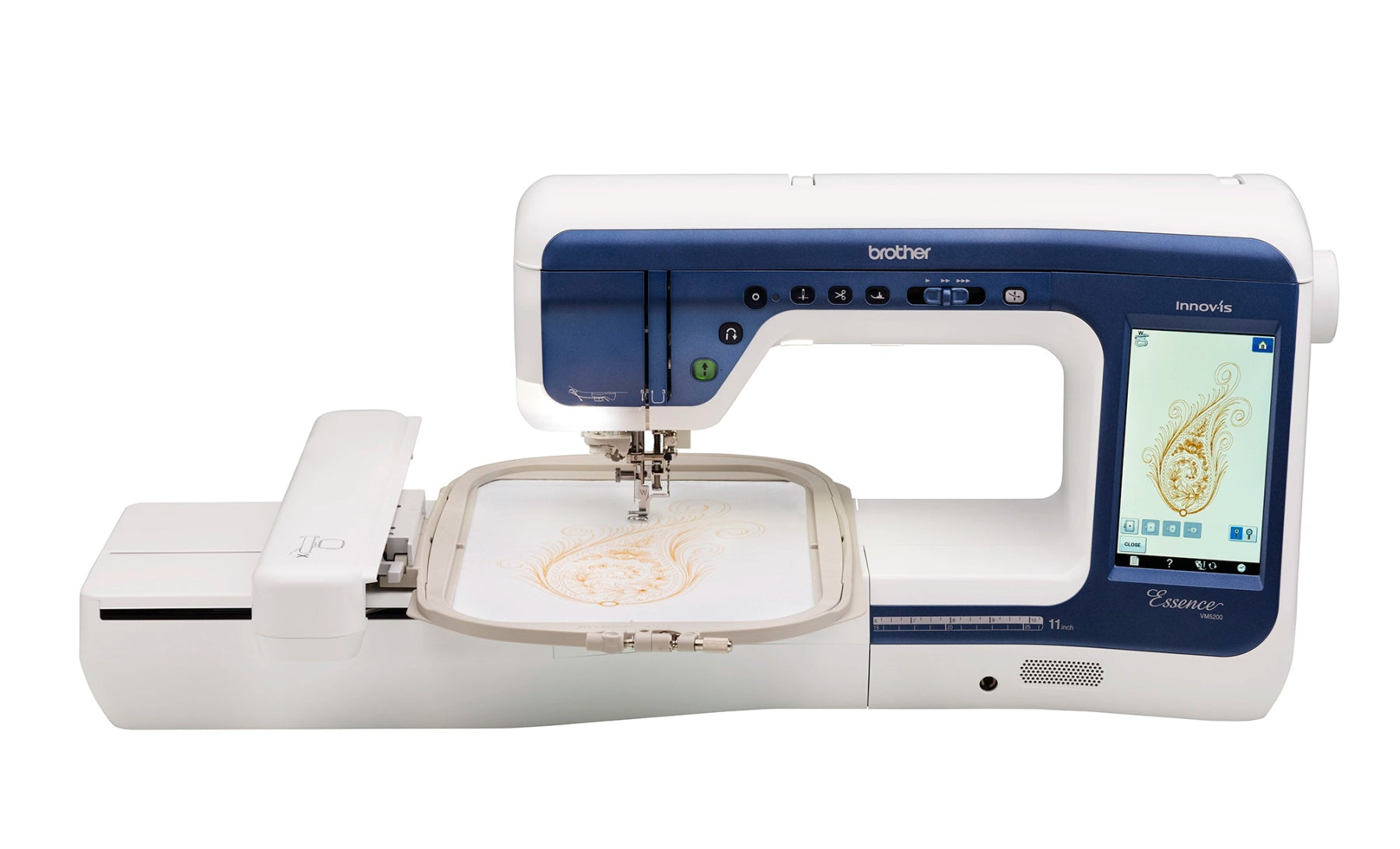

Create just about anything you imagine with the all new Essence Innov-ís VM5200 home sewing, embroidery and quilting combination machine. From intricate stitch work using the 715 built- in sewing stitches, to embroideries using one of 318 embroidery designs, let your imagination soar with this affordable and dynamic machine.
The VM5200 is perfect for any level of skill with its easy-to-use interface and Droplight Positioning Marker that tells you where your needle will drop. Time-saving features will help you create more great projects in less time. The Automatic Presser Foot functionality allows you to keep sewing without stopping to lift and lower the presser foot each time.
You’ll love how easy it is to format multiple lines of text and even adjust their locations with a push of a button, right from the intuitive touch screen. Creating large projects is easier and more fun than ever! The expansive 11.25” of workspace and the 8” x 12” maximum embroidery area allows you to work on those large projects you may have struggled with in the past.
| Carton Dimensions (W” x D” x H”) | 23.25″ x 28.8″ x 22.5″ |
|---|---|
| Carton Weight (lbs) | 64.8 |
| Unit Dimensions (W” x D” x H”) | 11.2″ x 22.5″ x 13.1″ |
| Unit Weight (lbs) | 34 |
Main Features
- Built-in stitches, embroidery designs, and fonts – Create more with 715 built-in sewing stitches, 318 embroidery designs, and 17 lettering fonts.
- Automatic presser foot functionality – Automatically raise or lower your presser foot after trimming with your standard foot or optional multi-function foot controller.
- Multiple line text formatting – Embroider fonts on multiple lines with the push of a button on the screen and easily adjust the location by using the touch screen arrows.
Foot and pivot settings Flexible presser foot height settings and pivot function for more types of fabric and layers.
- Large embroidery area – Maximum embroidery area of 8″ x 12″ for your larger projects.
- 10″ LED lighting – Up to 50% brighter than most Brother machines.
- 11.25″ Workspace – Handle your larger projects with ease
- 7″ LCD touch screen display – Allows you to view on-screen tutorials and control the machine with large, intuitive icons
- Up-to 1,050 stitches per minute – Create more works of art in less time
- Automatic thread trimming – Cuts threads between color stitch blocks
- iBroidery.com compatible – Over 5,000 designs available for purchase on ibroidery.com
Additional Specialty Feet Available Yes Adjustable Presser Foot Pressure Yes Automatic Thread Cutter Yes Built-in Languages Yes Display Type LCD Feed Dog Points 7 LCD Display Size (W” x H”) 3.6″ x 6.0″ Lighting Type
LED Memory Card Reader Yes Needle Position Key (Up/Down) Yes Needle Threading System Automatic Presser Foot Leveling Yes Quick Set Bobbin Yes Realistic Preview No Workspace Area 5.0″ x 11.25″
Dimensions
| Carton Dimensions (W” x D” x H”) | 23.25″ x 28.8″ x 22.5″ |
|---|---|
| Carton Weight (lbs) | 64.8 |
| Unit Dimensions (W” x D” x H”) | 11.2″ x 22.5″ x 13.1″ |
| Unit Weight (lbs) | 34 |
Embroidering
| Automatic Feed Thread Cutting | Yes |
|---|---|
| Built-In Alphabet Designs | Yes |
| Built-In Border Function | Yes |
| Built-In Designs | 318 |
| Built-in Embroidery Designs featuring Disney/Pixar Characters | 0 |
| Cap Frame Capability | No |
| Computer Connectivity | Yes |
| Curved Text on Screen Editing | Yes |
| Drag and Drop Editing | Yes |
| Frame Designs – Shapes | 10 |
| Frame Designs – Stitches | 14 |
| Included Embroidery Hoops | 8″ x 12″, 5″ x 7″ |
| Maximum Embroidery Area | 12″ x 8″ |
| Maximum Embroidery Speed (spm) | 1050 |
| My Custom Design Feature | No |
| Numbered Threading Guides | Yes |
| Onscreen Automatic Density Adjustment | Yes |
| On-Screen Editing | Yes |
| On-Screen Help | Yes |
| Resume Function | Yes |
| Sewing Decorative Stitches with Embroidery Arm Attached | Yes |
| Space Reduction among Embroidery Alphabets | Yes |
| Thread Wiper | Yes |
| Trial Position/Layout Function | Yes |
| Built-in Quilting Stitches | Yes |
|---|---|
| Built-in Sewing Lettering Fonts | 5 |
| Drop-Feed | Automatic |
| Free Motion Quilting Foot | Yes |
| Included Quilting Feet | Yes |
| Automatic Height Adjustment (AHA) | Yes |
|---|---|
| Back to Beginning Key | Yes |
| Built-In Lettering Fonts | 5 |
| Built-In Stitch Selections (Stitches) | 745 |
| Button Hole Styles | 14 |
| Independent Bobbin Winding Motor | Yes |
| Knee Lifter | Yes |
| Maximum Sewing Speed (Stitches Per Minute) | 1050 |
| My Custom Stitch Feature | Yes |
| Pivot Function | Yes |
| Sideways Sewing | Yes |
| Speed Control | Yes |
| Stitch Length (mm) | 5 |
| Stitch Width (mm) | 7 |
| Carton Contents‡ | Spool cap (special), embroidery needle plate cover, knee lifter, straight stitch needle plate, cord guide bobbin cover (with single hole), specialty thread bobbin cover, bobbin case for bobbin work, two embroidery frame sets (SA447 and SA438), embroidery bobbin thread, stabilizer material, grid sheet set, my custom stitch CD, soft cover,, additional accessories included in box |
|---|---|
| USB Cable | Included |
| Warranty | 2/6/25 Year Premium Limited Warranty |
