• 80 built-in stitches, including 10 one-step auto-size buttonhole styles
  • 55 alpha numeric Characters help create monogramming or letter sewing easily
  • Use the key pad to select desired stitch by number and it appears in the LCD window.
    The LCD also provides information regarding the length and width of stitches
  • Perfectly sized buttonholes every time
  • Combine up to 35 stitches into a favorite pattern, repeat patterns and create mirror images of stitches
  • Protect your sewing investment with the included hard case

  • Alphabet font
  • Stitch selection via key pad and LCD window
  • 10 One-step auto-size buttonholes
  • Combine stitches for great creativity
  • Hard case cover

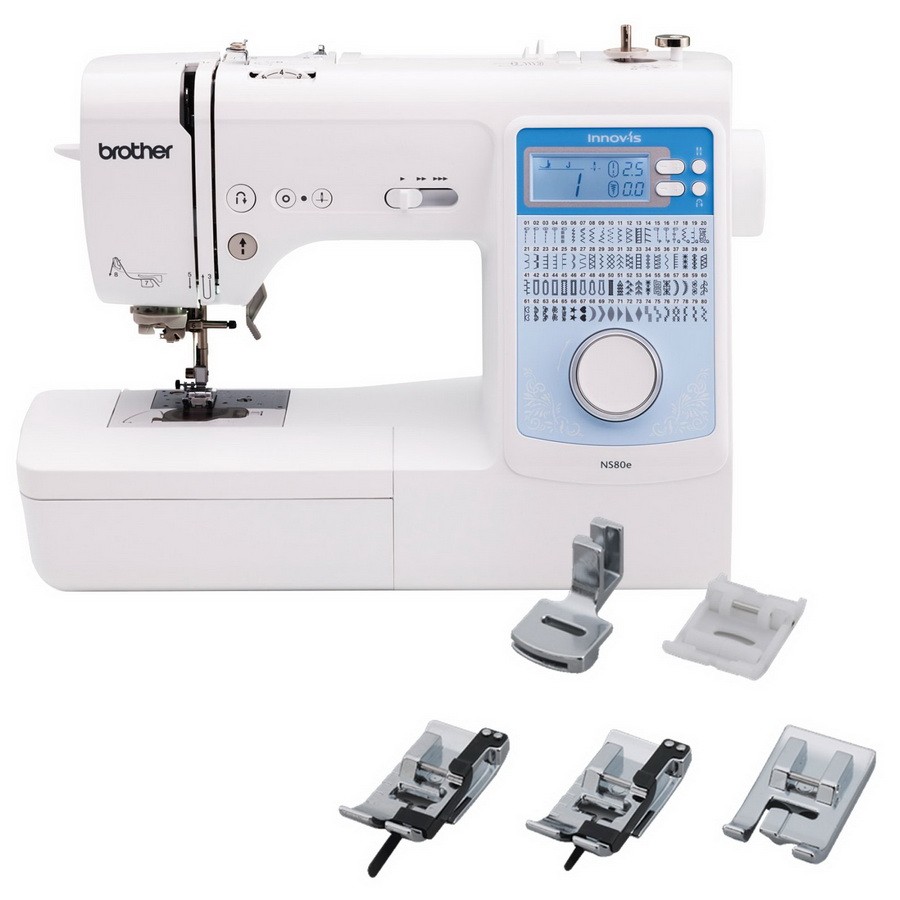

  • Angela Wolf presents the new NS80PRW (Same as Newest NS80E without PRW Label) by Brother

    Brother Sews Specialists Angela Wolf shows off the latest in Brother Sewing Machines, the new NS80

  • US Warranty 25 Years Head, 6 Years Electrical, 2 Years Parts, 2 Years Labor
  • Extended US Warranty: Extended Warranty Available
  • Non-US Warranty: 30 days parts and labor
Specifications

Spec Sheet for Brother Innov-is NS80/E Sewing Machine

Manuals for Brother Innov-is NS80/E Sewing Machine

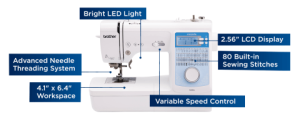

  • LCD Screen: Yes
  • Stitch selection type: Direct selection buttons & 10 key touchpad
  • Bobbin type: Top drop-in
  • Upper tension adjustment: Manual
  • Needle threader: Advanced Automatic
  • Quick-set bobbin: Yes
  • Automatic bobbin winding: Yes
  • Feed dogs: 7 point
  • Drop feed: Yes
  • Automatic start/stop button: Yes
  • Speed control lever: Yes
  • Free arm: Yes
  • Quick change presser feet: Yes
  • Built-in accessory storage: Yes
  • Foot controller: Yes
  • Sewing lamp: 1 LED



  • Basic Features:

    LCD Size (Horizontal x Vertical) inches 2.0 x 0.7
    Lighting 1 LED
    Needle Threading System Easy
    Independent Bobbin Winding Motor Yes
    Thread Sensor No
    Thread Sensor On/Off No
    Automated Upper and Lower Thread Cutting No
    Quick-Set™ Bobbin Yes
    USB No
    Computer Connectivity with Update Capability No

  • Sewing Features:

    Work Space (Height & Width) inches 4.1 x 6.2
    Maximum Sewing Speed (Stitches Per Minute) 850
    Feed Dog 7( Note Quilters feed)
    Built-in Sewing Stitches (Includes Buttonhole Styles) 80
    Buttonhole Styles 10 One-step
    Built-in Sewing Lettering Fonts 1

  • Stitch Width (mm) 7mm

    Stitch Length (mm) 5mm
    Start/Stop Button Yes
    Speed Control Yes
    Needle Position Key (Up/Down) Yes
    Presser Foot Leveling Yes
    Drop Feed/Free Motion Yes
    Built-in Quilting Stitches No
    Included Quilting Feet No (additional purchase required)
    Specialty Feet Included Yes (Additional specialty feet may be available.

  • Warranty 2/6/25 year premium warranty.



  • See premium warranty for details.
    Machine Dimensions (H x W x D) 13.59″ x 7.24″ x 11.69″
    Machine Weight 14 lbs
    Shipping Dimensions (H x W x D) 17.80″ x 11.30″ x 21.00″
    Shipping Weight 20 lbs
    UL/CSA Listed Premium Warranty
  • Extension Table add on.

Included Accessories

Feet, seam ripper, needle set, twin needle, bobbins, eyelet punch, cleaning brush, screwdrivers, spool caps, accessory bag, stitch pattern plate and holder, instruction manual.

Carton Contents:

Accessory Storage Built-in
Included Accessory Feet: Buttonhole foot, Overcasting foot, Zipper foot, Zigzag foot, Button fitting foot, Monogramming foot, Blind stitch foot
Other Included Accessories Accessory bag with seam ripper, needle set, twin needle, bobbins (4), eyelet punch, cleaning brush, screwdrivers, spool caps (3), extra spool pin, stitch pattern plate and holder, instruction manual, power cord

Other Images

Jam resistant top bobbins with quick-set bobbin


Simply insert your bobbin pull the thread through the slot and you are ready to sew. No more “fishing” for bobbin thread.



Built-in automatic needle threading system


Save wear and tear on your eyes. No more searching for the eye of the needle.

Built-in computerized stitches


Incredible variety at your fingertips with built-in computerized utility and decorative stitches.

Super bright LED work light
Less eyestrain so you can better view your projects.

Super bright LED work light
