Description
Juki DX7 IS a high-performance machine that is user-friendly, efficient, and full of great features, this sewing machine is what every sewist would love to own. It can be used to make even and consistent straight stitches, great zigzag stitching, and beautiful free-motion quilting.
Number of stitch patterns 287 For beautifully even stitches, the Juki “box feed” is integrated into this machine, ensuring consistent and even fabric feeding. The HZL-DX7 handles thicker fabrics and layers beautifully thanks to this unique feeding system and can stitch through any type of fabric whether lightweight, heavyweight, or stretch. No Tax Free Shipping! 12 Month Zero % .
If you would like your quilts to come out beautifully without any stitch pulling, just set the Juki HZL-DX7 to sew with the presser foot lifted and floating ever so slightly at a setting of your choice.
Button holes are created with ease through the sensor buttonholing system that Juki uses. There are 16 choices of buttonholes types so you can choose which one best suits your project.
With the Juki HZL-DX7, you can select patterns and stitches with the touch panel and choose from 80 stitches including alphabetical/numerical fonts!
There are buttons that are easy and quick to select that control the machine, including reverse or lock stitch, thread trim, needle up or down, start or stop, and auto-lift presser foot. You can also assign a function to the foot switch/pedal’s heel portion for easy access.
Sewing speed on the Juki HZL-DX7 can be adjusted to a maximum of 1050 stitches made in a minute. For ease of use, if you need to sew on tight corners or be particularly precise with your stitches, you can use the low-speed or inching sewing function. Your stitches can also be adjusted in length or width with the easy adjustment dial.
The machine comes with 30 accessories, and includes the Juki warranty.
Included Accessories
- Wide table.
- Open toe presser foot. (O)
- Smooth presser foot. (T)
- Edge Sewing presser foot. (R)
- Eyelet punch.
- Hard case.
- Buttonhole presser foot. (E)
- Manual buttonhole presser foot. (I)
- Overcasting presser foot. (C)
- Blind stitch presser foot. (D)
- Zipper presser foot. (B)
- Bobbin (3)
- T-shape screwdriver.
- Ripper.
- Cleaning brush.
- Spool cap (Small).
- Spool cap (Middle).
- Needle set. – HA X 1 # 11 (1), # 14 (1), # 16 (1), for knit # 11 (1)
- Standard presser foot. (A)
- Bobbin. (1)
- Spool cap. (large)
- Walking foot. (N)
- Patchwork presser foot. (P)
- Auxiliary spool pin.
- Quilt presser foot. (Q)
- Quilt guide.
- Twin needle. (One set)
- Foot Controller model name; JC-001
- Knee-lifting lever.
- Instruction manual.
- DVD.
- Power cord.
Specifications
- Control system Computer

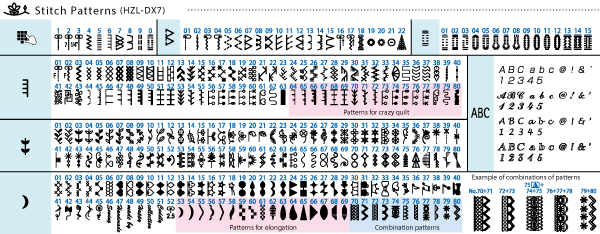

- Number of stitch patterns 287
- Number of available fonts 4
- Buttonhole Automatic (sensor system) with clamping plate
- Direct stitch pattern selection 10 patterns
- Start/stop button
- Green: Ready to start and/or while sewing
- Red: Not ready to start
- Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing
- Maximum stitch speed 1,050 sti/min
- Thread tension system Automatic
- Presser foot pressure adjustment Stepless adjustment
- Bobbin thread winder Bobbin winder with independent motor
- Light 1 LED light
- Change in the length/width of stitches Button system
- Number of needle position (straight stitch/other than straight stitch) 37 / 3
- Memory function 10 patterns
- Height of lifting of presser foot (1 step/2 steps)
- Button system: 6 mm
- Lever system: 6 mm / 12 mm
- Wide table Included
- Foot controller Included; with foot switch function
- Auto thread trimming
- Automatic needle threader
- Automatic lock stitch and thread trimming
- BOX feed mechanism
- Drop feed
- Quick bobbin preparation
- Straight stitch slide plate
- Float function
- Free arm
- Pattern (right and left) reverse
- Twin needle sewing
- Adjustable starting / reverse stitch speed
- Lock stitch
- Low-speed inching sewing
- Presser foot pivot function
- Presser foot horizontality holder button
- Hard case with accessory storage part
- Knee lifting lever
Measurements
ENJOY THE FREEDOM TO CREATE OR DESIGN WITH EASE & SATISFACTION
ELONGATION PATTERN
Change the overall length without changing the sewing density of the pattern.
STITCH ADJUSTMENT DIAL
Use the easy-to-operate dial to adjust the width and length of the stitch. The dial also lets you make slight adjustments while sewing zigzag stitches.
FREE MOTION
Flip the switch and drop your feed dogs. Enjoy both straight stitch and specialized zig zag for free motion. Adjust the presser foot height for easy movement. Enjoy the Freedom of Free Motion.
DIRECT STITCH PATTERN SELECTION
Often-used sewing patterns such as straight lines, overcast stitches, and zigzag patterns can be quickly selected via direct buttons. You can also adjust the sensitivity of the touch panel.
ONE-POINT PATTERNS
The decorative patterns can be sewn as one point patterns. It is also lovely to create an original tag by combining these patterns with the character stitches.
CHARACTER STITCH
The machine includes three alphabetic/numeric fonts. Up to ten often-used patterns such as names and initials can be saved in the memory.
CORNER SEWING OF APPLIQUE
The stitch width of the needle can be set to automatically and gradually change to achieve a stitch that gives a beautiful finish even to the corner of an applique or the start /end of a line of sewing. By adjusting the width and length, you can also control the angles of your design.
LACE LIKE PATTERNS
Sewing several patterns in parallel creates lovely lace-like stitches. You can enjoy the combination of patterns that give the image of dedicated lace braid.
Create and Design with Precision and Perfection
LOCK STITCH
For the lock stitch at the start and the end of sewing, you can choose two kinds of “Reverse stitch” and “Lock stitch”. If you press the lock stitch button in the middle of sewing a pattern, the machine stops after sewing one cycle of the pattern.
KNEE-LIFTING LEVER
Presser foot can be raised and lowered by the knee-lifting lever. Presser foot lift is up to 0.5″(12mm) when the lever is used. When the foot is raised to the maximum height, you can also switch it back from automatic operation (button) to manual operation (lever).
LOW-SPEED INCHING SEWING
By pressing and holding the needle up/down button, you can sew slowly. Sew corners, stops and starts with precision.
SPEEDY STRAIGHT SEWING
With a maximum straight sewing speed of 1,050 stitches/min, you can sew fast.
Quick Preparation Makes Sewing a Breeze
AUTOMATIC NEEDLE THREADER
Simply place the thread in the guide and lower the lever. Easily and quickly thread a needle with one hand.
BOBBIN WINDER WITH INDEPENDENT MOTOR
To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread every time, and also use a cutter after winding.
QUICK BOBBIN PREPARATION
The bobbin preparation is easy. Just follow the guide and it is not necessary to pull up the bob
DIMENSIONS
445(W) x 291(H) x 210(D) mm
DIMENSIONS WITH HARD CASE
510(W) x 305(H) x 257(D) mm
ARM SIZE
8.0″ x 4.4″ (203 x 112mm)
WEIGHT
10.3kg (21.6lbs)
CUSTOMIZE YOUR MACHINE WITH EVEN MORE NEW FUNCTIONS!
Customize Your Juki to Suit Your Needs
EASY-TO-USE QUICK SELECT BUTTONS
- Start/stop
- Reverse stitch
- Lock stitch
- Thread trimming
- Needle up/down
- Presser foot auto lift
FOOT SWITCH FUNCTION
Allowing for greater versatility, Juki now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. Also allowing for no special settings you have complete control to customize your machine to best fit you.
PRESSER FOOT PIVOT FUNCTION
When you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers for continuous smooth sewing.
*This function can also be switched off.
SETTING OF THE PRESSER FOOT LIFTING AFTER THREAD TRIMMING
Because the presser foot is automatically lifted after automatic thread trimming, you can quickly remove fabrics.
*This function can also be switched off.
ADJUSTABLE STARTING / REVERSE STITCH SPEED
You can adjust the starting and reverse stitch speed between three steps of fast, normal, and slow.
CHECK THE VIDEO REFERENCE FOR CONVENIENT ASSISTANCE (CLICK THE VIDEOS TAB ABOVE)!
With the combination of assured automatic operation and fine manual control, you can enjoy ideal natural operation.
- Foot Switch Function
- Presser Foot Pivot Function
- Hassle-Free Operation
Easily Create and Enjoy Beautiful Buttonholes with Juki’s Combination of Industrial Background and Modern Technology
Use the buttonhole sensor system for optimal feed on all types of fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and left sides. Automatically works in optimum order for a perfectly finished buttonhole.
Buttonhole
The buttonhole sewing presser foot contains a clamping plate, so you can confidently feed fabrics by holding them between the clamping plate and the presser foot.
16 types of buttonholes are available for your needs.
Cutting width adjustment of the buttonhole. Now it is possible to adjust the cutting width in 3 steps.
Float Function Prevents Uneven Seams
By pressing the float button, you can sew with the presser foot slightly raised. By raising the presser foot to float you can sew fabrics without pushing layers or creating uneven seams.
You can sew with the presser foot slightly floated.
The height of the presser foot can be set in increments of 0.1 mm, allowing delicate adjustment according to the materials.
USING THE FLOAT FUNCTION
The standard presser foot is used in both cases.
NOT USING THE FLOAT FUNCTION
Pressure on layers create uneven seams.
Juki HZL-DX Series Sewing Machine – HZL-DX7
GET THE MOST OUT OF YOUR SEWING WITH THE NEW JUKI HZL-DX SERIES & TURN YOUR CREATIONS INTO MASTERPIECES
Most Reliable and Dependable
BOX FEED – JUKI INDUSTRIAL SEWING MACHINE TECHNOLOGY
The Juki industrial “BOX Feed” system has been brought to the home sewing machine. Our BOX Feed allows you to create perfect high-quality stitches on all types of fabrics.
THICK DENIM FOLDED INTO THREE LAYERS FOR A FLAT FELL SEAM
Evenly sews thick fabrics effortlessly.
THE BOX FEED SYSTEM
Stay in contact with your fabrics longer for a consistent, reliable seams every time.
STITCHING THIN FABRICS
No fabric shrinkage even sewing on light weight cotton.
STITCHING TOWEL FABRICS
Evenly feeds hard-to-sew high pile fabrics.
Straight Stitch Slide Plate
Simply slide the front lever to switch to a single needle hole! Sew the lightest fabrics with perfect needle permeation. The single needle plate will not allow fabrics to be pushed into the needle hole. Free motion stitch with precision and perfection. Sew with confidence, when the single needle hole plate is set, only the straight stitch patterns can be selected.
NEEDLE HOLE FOR STRAIGHT STITCHES
